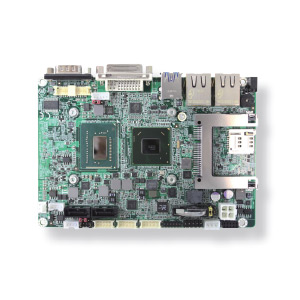

EasyBoard-882E Одноплатный компьютер 3.5 на базе i7-3517UE , -40°~ +85°C

EasyBoard-882E
Wide-Range Temperature 3.5" Intel® Ivy Bridge i7-3517UE Compact Board

Soldered onboard Intel® Core™ i7-3517UE processor @ 1.7 GHz
Dual Gigabit Ethernet ports
Dual-channel 24-bit LVDS and DVI-I
Support dual independent displays
Support RS-485 auto-flow control
Integrated micro SIM socket to support mobile networking
Support Intel AMT (iAMT)
Extended operating temp.: -40 ~ 85°C

Информационный листок (англ.), PDF

---------------------------------------------

System
CPU Soldered onboard Intel® Core™ i7-3517UE 1.7 GHz processor
Memory 1 x 204-pin SO-DIMM socket, supporting up to 4GB
1333/1600MT/s DDR3 SDRAM
Chipset Intel® PCH QM77
BIOS AMI PnP Flash BIOS
Watchdog Timer 1~255 levels reset

I/O
Super IO Chipset Fintek F71869ED
Serial Port 2 x COM ports: COM1: RS-232, COM2: RS-232/422/485
selectable
USB Port
4 x USB 2.0 ports
2 x USB 3.0 ports

Expansion Bus
1 x Mini-card socket
1 x micro SIM socket

Storage
2 x Serial ATA ports with 600MB/s HDD transfer rate
1 x CFast socket

Ethernet Chipset
1 x Intel® 82579LM PCIe GbE PHY and iAMT support
1 x Intel® 82583V PCIe GbE controller

Audio Interface Realtek ALC662 HD Audio CODEC, MIC-in/ Line-out/ Line-in

Display
Graphics Chipset Integrated Intel® HD Graphics 4000
Graphics Interface
DVI-I: Analog RGB support up to 2048 x 1536 @ 60Hz
or TMDS support up to 1920 x 1200 via Chrontel
CH7318
LCD: Dual-channel 24-bit LVDS
Dual independent displays support

Mechanical & Environmental
Power Requirement +12V DC
Power Consumption 3A@+12V (Typical)
Operating Temp. -40 ~ 85єC (-40 ~ 185єF)
Operating Humidity 10%~95% @ 85єC (non-condensing)
Dimension (L x W) 146 x 102 mm (5.7" x 4.0")

---------------------------------------------

Ordering Information

EasyBoard-882E 3.5" Intel® Core™ i7-3517UE Compact Board

Optional Accessories

CBK-06-77M3-00 Cable kit
1 x SATA cable
1 x SATA power cable
2 x USB dual port cables
1 x Audio cable
1 x COM port cable
